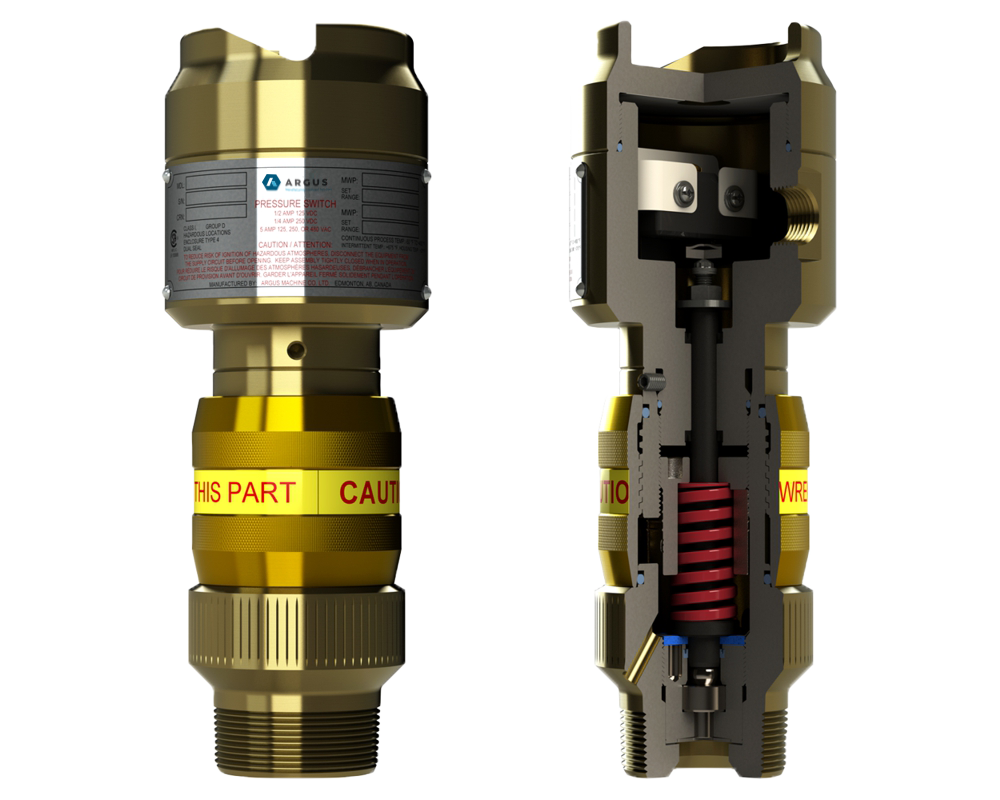

Rugged and reliable, the Argus Pressure Switch provides effective on / off pump enhancing environmental protection, personnel safety and reducing pump damage.
Argus Pressure Switches are built to provide reliable, effective on/off control of artificial lift pumps supporting environmental protection, personnel safety, and reduced pump damage. Each spring range covers a broad spectrum of pressure settings, while an Inconel® diaphragm helps withstand sour and corrosive media in oil, gas, and steam applications.

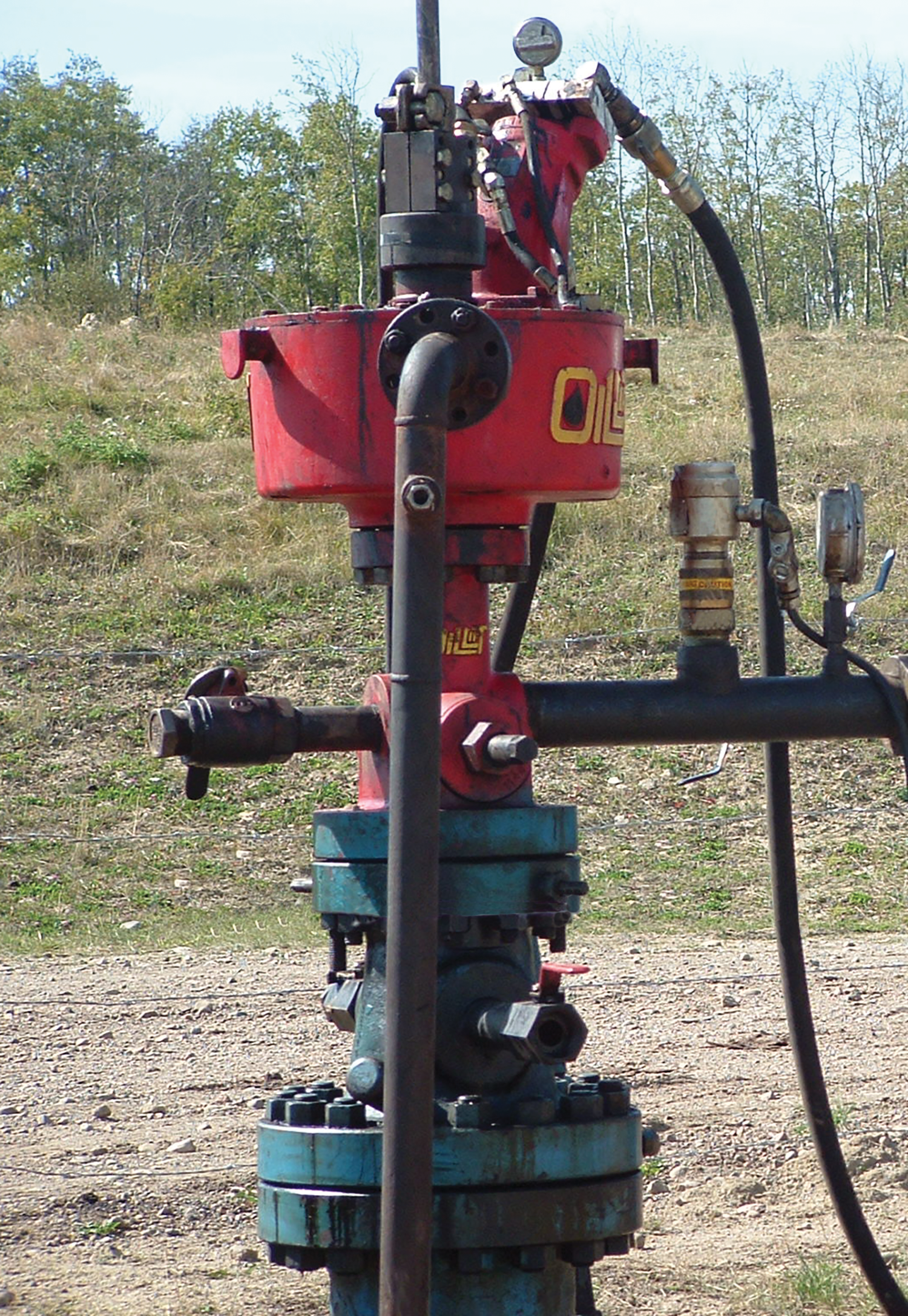

Argus Pressure Switches provide reliable on/off control and shutdown for artificial-lift and production facilities in harsh wellsite conditions.
✓ Working Pressure: 20 PSI (138 kPa) to 5000 PSI(34,470 kPa)
✓ Proof Pressure: 7500 PSI (51,710 kPa)
✓ Hazardous: CSA Class I, Div. 1 & 2; Type 4 enclosure
✓ Sensing element: Inconel® 718 diaphragm for sour/corrosive service
✓ Process connections: 2″ NPT male, plus clamp-hub options (Grayloc / Securamax / Bluesky)

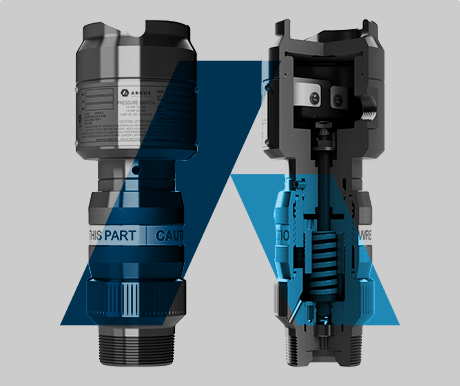

The Argus Pressure Switch combines rugged construction with practical field adjustability and serviceability.
✓Simple yet versatile: each spring encompasses a broad spectrum of pressure settings.
✓ Inconel® diaphragm: withstands sour and corrosive media in oil, gas, and steam applications.
✓ Externally adjustable set point: easy access and adjustment without compromising explosion-proof protection in hazardous locations.
✓ Automatic or manual reset: choose the reset style that fits your operation.
✓ Field-replaceable micro-switch: convenient serviceability.
✓ Broad pressure range advantage: accommodates many set points/applications minimizes models in the field and supports low maintenance costs.
Certified and manufactured to recognized standards for hazardous locations, industrial control equipment, and process sealing requirements.
✓ Hazardous location certifications: CSA Class I, Division 1; UL 1203 explosion proof; UL 508 industrial control equipment; CSA C22.2 No.14.
✓ Dual Seal of process sealing meets ANSI/ISA 12.27.01 requirements.
✓ Quality systems: manufactured to API Spec Q1 and ISO 9001.
✓ H2S materials references: ISO 15156 and NACE MR0175 noted for H2S-containing environments.
Configure the Argus Pressure Switch to match your pressure range, operating preference, temperature requirements, and connection standard.
✓Pressure spring ranges (automatic or manual): 20–100, 40–200, 80–800, 150–1400, 250–2000, 1500–5000 psi
✓ Reset options: automatic reset or manual reset
✓ Temperature models: standard (–50°F to +400°F) and high temperature (–50°F to +675°F)
✓ Process connections: 2″ NPT male thread; Grayloc (2GR20), Securamax (2SJ20), Bluesky (2CJ20)
✓ Available options: security seal assembly; factory-installed cable assembly
Custom designs, trims, and materials are available upon request. Refer to the brochure for full specifications of standard products.
Parameter | Details |
|---|---|
Classification | CSA Class I, Div. 1& 2, Group D
Hazardous Locations
|
Dead Band | Fixed |
Electrical Rating | 1/2 Amp @ 125 VDC
1/4 Amp @ 250 VDC
15 Amps @ 125, 250 or 480 VAC (50/60Hz)
|
Enclosure | Type 4 |
Pressure Sensing Element | Inconel®, Grade 718 Diaphragm |
Setting | External |
Sset Point Repeatability | ± 1% of Adjustable Range |
STD. Process Connection | 2″ NPT Male Thread |

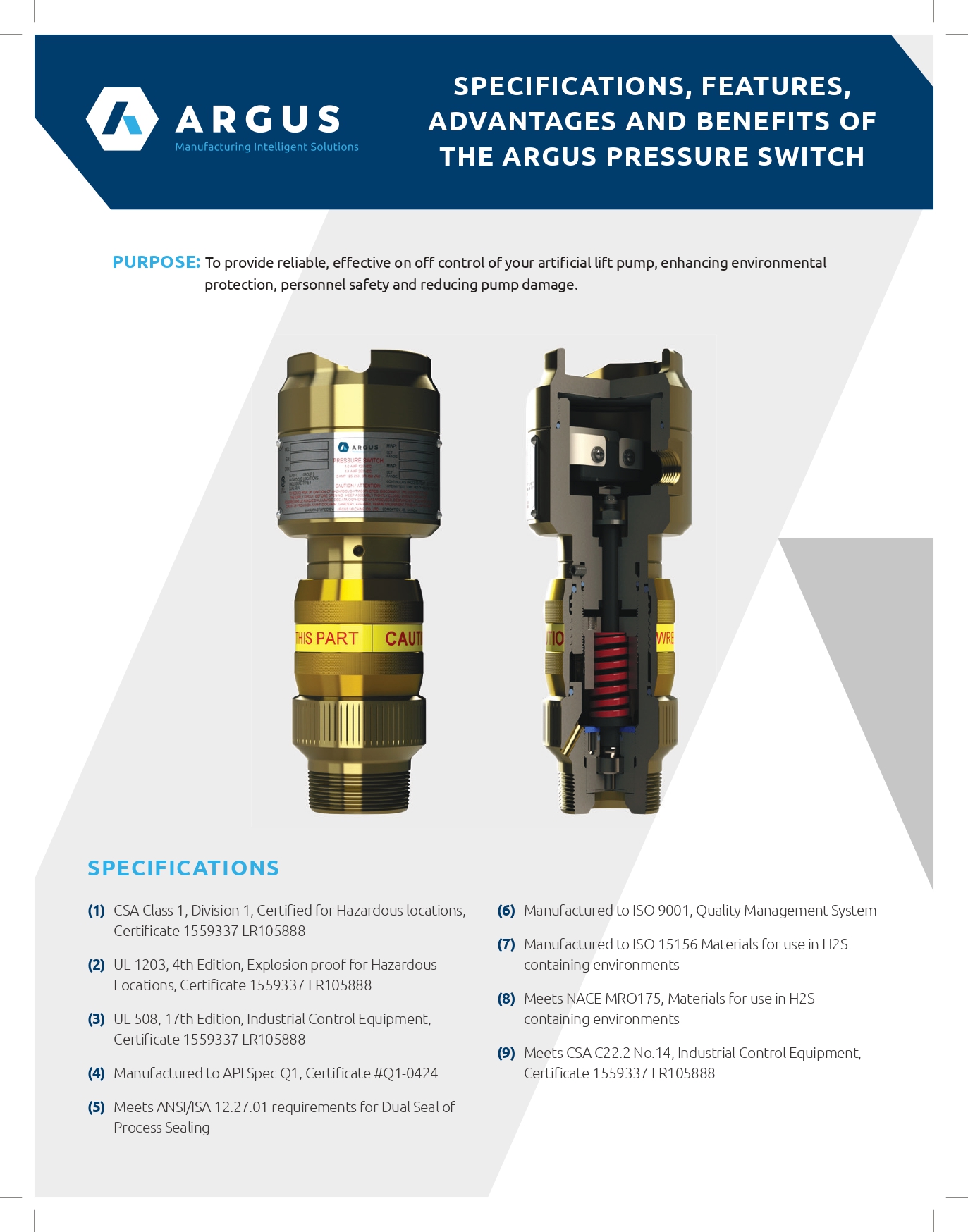

Access our product brochures below
Trusted globally by operators in North America, the Middle East, and South America for critical pigging and pipeline-integrity operations. More than 40000 valves sold to 400 operators

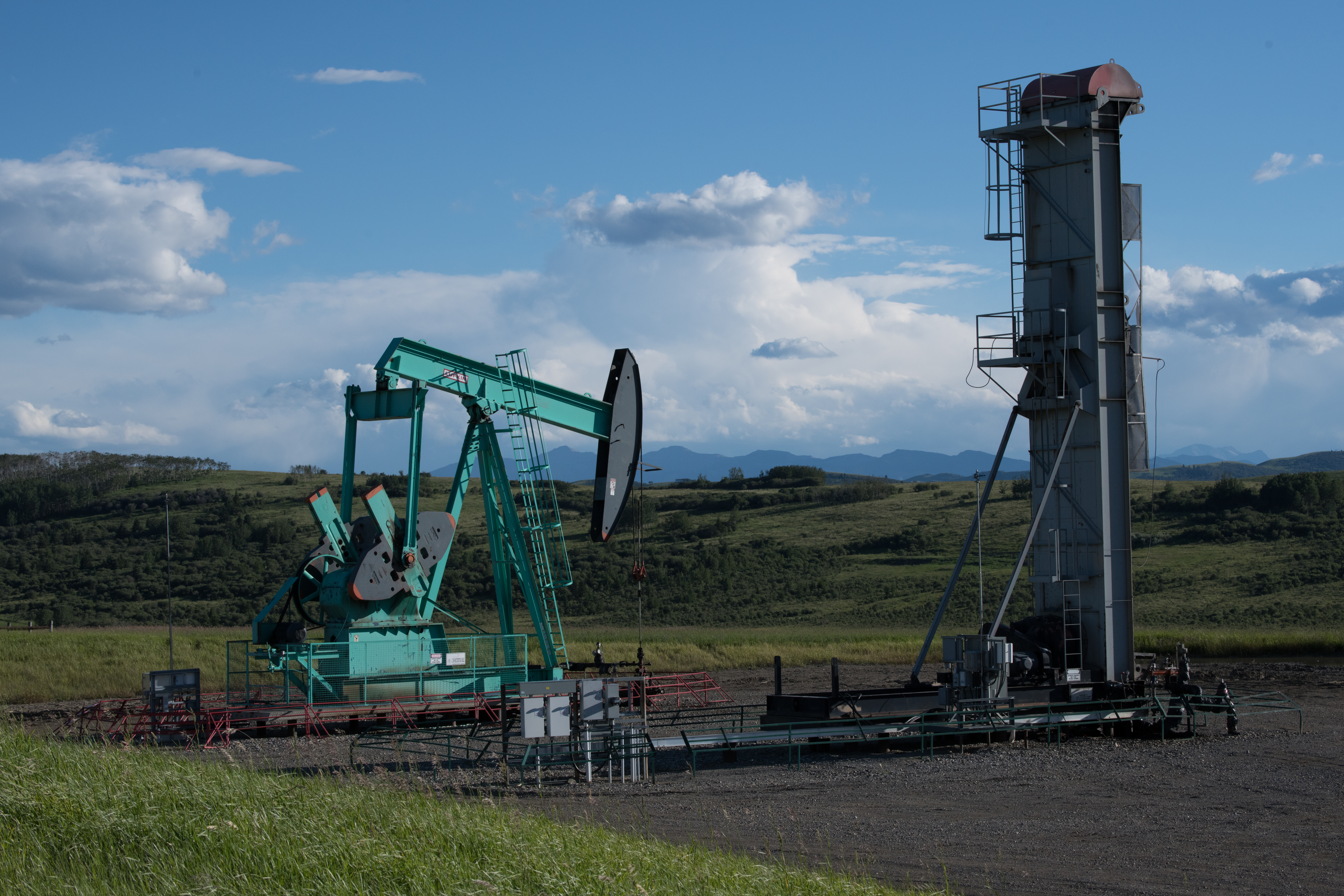

Reliable, effective on/off control for pump jack artificial lift systems supporting dependable well site protection.
